Proper lighting for the window switches
#1
Proper lighting for the window switches
This, I believe, is the way GM should have lit the window control switches, instead of that dumb LED mounted on the ceiling.

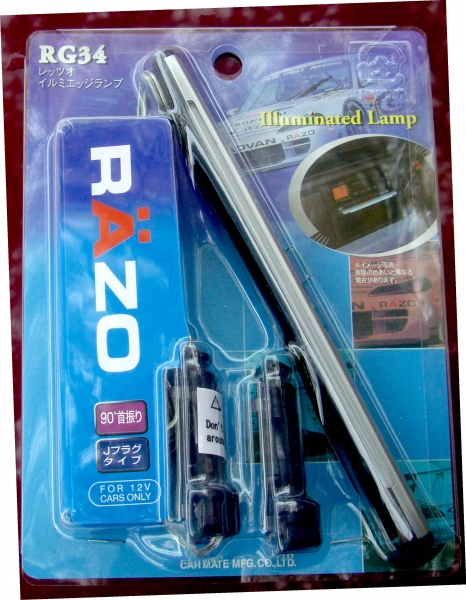

This is the kit I used, which cost under $13 buckes.

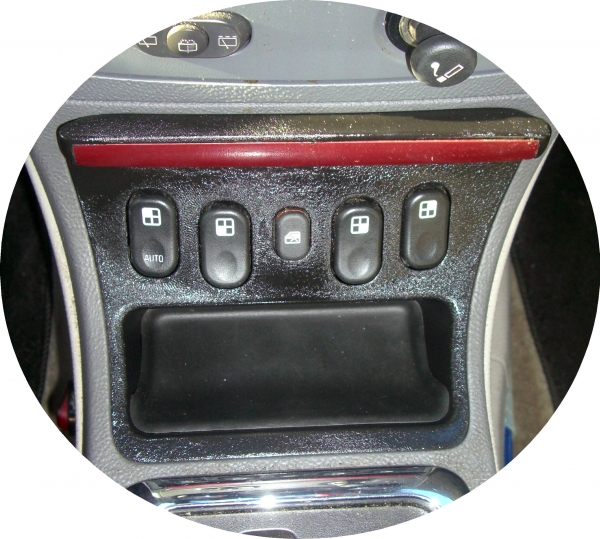

Wiring it was not as simple as I thought it might be. I did not see any resistor in the lighter plug, so I attempted to hardwire it. Promptly blew it up. I bought a second unit, then broke apart the plug and found the resistor. (Then, I read the tiny, tiny print on the package and saw that it said not to cut the plug off.) Needless to say, I soldered the resistor into the negative lead. Next, I took the light apart so I could paint part of it to match my car and other parts of the interior. Finally came the big problem-the light is flat, and the dash is curved. I first used epoxy putty to attach it, then applyed glazing putty and wet sanded the whole thing. I painted it with black wrinkle finish paint so it would have texture to match the other parts of the console.
Since LED's dont work well with dimmers, I figured I would hook up a relay to one of the dash lights, then connect a full 12 volt supply to the new light. Unfortunately, the relay is not activated by the dash lights. So, until I can check what the actual voltage is and figure something out, I put in a small rocker switch on the side of the console to control the light. Since it lights up when power is on, I dont have to worry about leaving the lights on.

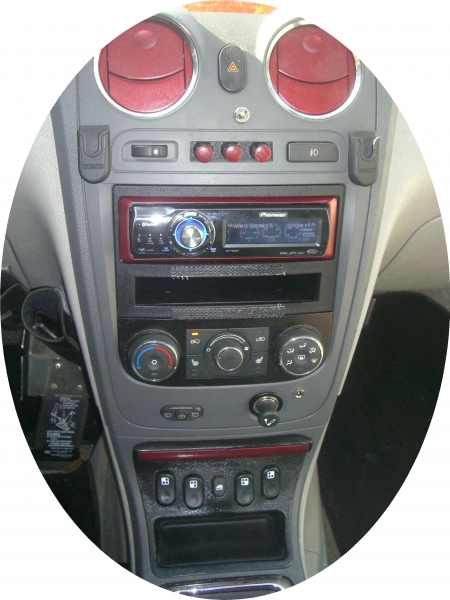

You can see the switch on the left side-it is red.
This is the kit I used, which cost under $13 buckes.
Wiring it was not as simple as I thought it might be. I did not see any resistor in the lighter plug, so I attempted to hardwire it. Promptly blew it up. I bought a second unit, then broke apart the plug and found the resistor. (Then, I read the tiny, tiny print on the package and saw that it said not to cut the plug off.) Needless to say, I soldered the resistor into the negative lead. Next, I took the light apart so I could paint part of it to match my car and other parts of the interior. Finally came the big problem-the light is flat, and the dash is curved. I first used epoxy putty to attach it, then applyed glazing putty and wet sanded the whole thing. I painted it with black wrinkle finish paint so it would have texture to match the other parts of the console.
Since LED's dont work well with dimmers, I figured I would hook up a relay to one of the dash lights, then connect a full 12 volt supply to the new light. Unfortunately, the relay is not activated by the dash lights. So, until I can check what the actual voltage is and figure something out, I put in a small rocker switch on the side of the console to control the light. Since it lights up when power is on, I dont have to worry about leaving the lights on.
You can see the switch on the left side-it is red.
#4
this is what i did, what do they say? something about ____ is the sincerest form of flattery?
https://www.chevyhhr.net/forums/how-tutorial-library-21/backlit-window-buttons-1878/
https://www.chevyhhr.net/forums/how-tutorial-library-21/backlit-window-buttons-1878/
#5
Like you, I saw the need for solving the problem except I went about it from the other side. Instead of lighting it from the back, I did it from above. The way you wired it, is it on whenever you start the engine, or only when the lights are on? I would like to have mine come on with the lights but have not figured out how to do it. For now, I have a separate switch.
#6
Like you, I saw the need for solving the problem except I went about it from the other side. Instead of lighting it from the back, I did it from above. The way you wired it, is it on whenever you start the engine, or only when the lights are on? I would like to have mine come on with the lights but have not figured out how to do it. For now, I have a separate switch.
#8

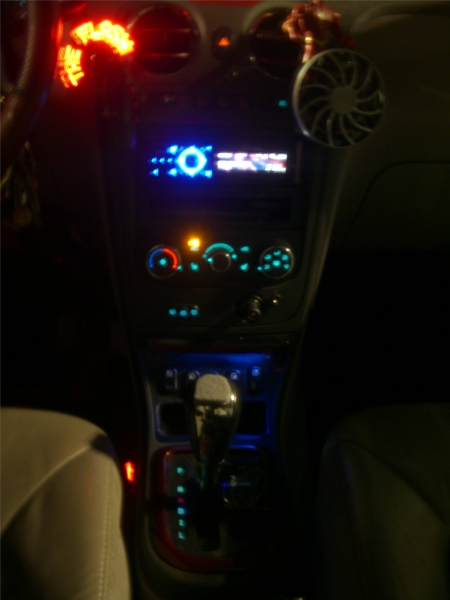

Here is the panal at night. You can see the switch lit up in red on the side of the console. It is not visible when driving-my leg blocks it. But it is noticible enough that hopefully I wont forget and leave it on when I leave the car.

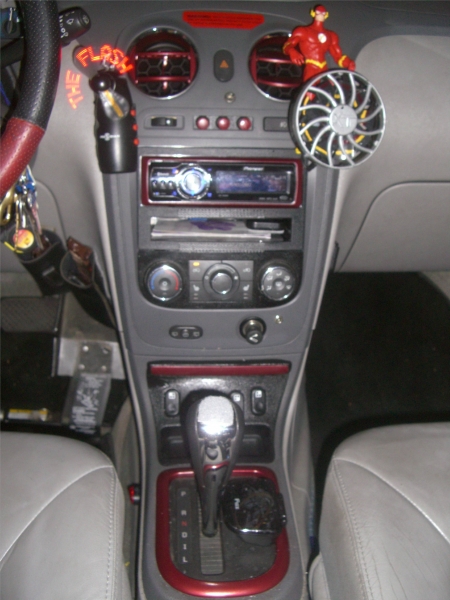

I had to paint the chrome around the shifter because it was reflecting the light and made it distracting. I think it looks better red, matching the other parts I painted.
I had to paint the chrome around the shifter because it was reflecting the light and made it distracting. I think it looks better red, matching the other parts I painted.
#10
Will the LED be ok with the dimmer?
I tried to use a relay through the same wire that I have going to the light on my vacuum gauge (I got the power from that off the 'Airbag Warning Light'). Strangely, although it lights the bulb, it does not carry enough current to operate the relay. When I hooked it up to a test light, it would not even light it. I will go down now, though, and try connecting the LED to that wire and see if it works. It would make it better if I didnt need to turn it on with a separate switch.
I tried to use a relay through the same wire that I have going to the light on my vacuum gauge (I got the power from that off the 'Airbag Warning Light'). Strangely, although it lights the bulb, it does not carry enough current to operate the relay. When I hooked it up to a test light, it would not even light it. I will go down now, though, and try connecting the LED to that wire and see if it works. It would make it better if I didnt need to turn it on with a separate switch.
