briansh73

Can someone please repost the stock amplifier wiring for the pioneer system. All of the old links and pdf's are broken. I am trying to run a mono amp through a line level converter, so do I only need one side of the wires? Maybe someone has a better way of doing this. Thanks

ChevyMgr

Audio Amplifier X1 (UQ3)



Audio Amplifier X1 (UQ3)
Pin Wire Circuit Function

1 0.5 D-BU/WH 346 Rear Subwoofer Speaker Output (+)

2 0.5 L-GN/BK 1794 Rear Subwoofer Speaker Output (-)

3 0.5 D-GN 1795 Rear Subwoofer Speaker Output (+)

4 0.5 L-BU/BK 315 Rear Subwoofer Speaker Output (-)

5 2 BK/WH 751 Ground

6-7 -- -- Not Used

8 2 RD/WH 640 Battery Positive Voltage

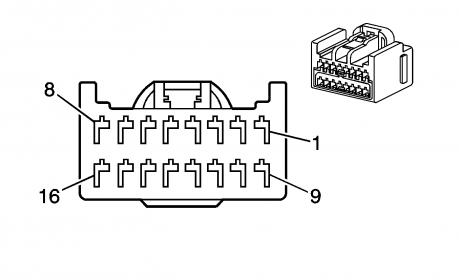

Audio Amplifier X2 (UQ3)



Audio Amplifier X2 (UQ3)
Pin Wire Circuit Function

1 0.8 YE 116 Left Rear Speaker Output (-)

2 0.5 BN 199 Left Rear Speaker Output (+)

3 1 D-BU 46 Right Rear Speaker Output (+)

4 1 L-BU 115 Right Rear Speaker Output (-)

5-8 -- -- Not Used

9 2 D-GN 117 Right Front Speaker Output (-)

10 2 L-GN 200 Right Front Speaker Output (+)

11 1 TN 201 Left Front Speaker Output (+)

12 1 GY 118 Left Front Speaker Output (-)

13-16 -- -- Not Used


Audio Amplifier X3 (UQ3)



Audio Amplifier X3 (UQ3)
Pin Wire Circuit Function

1 0.35 BN 1999 Left Rear Low Level Audio Signal (-)

2 0.35 TN 1946 Right Rear Low Level Audio Signal (-)

3 0.35 BN/WH 599 Left Rear Low Level Audio Signal (+)

4 0.35 D-BU 546 Right Rear Low Level Audio Signal (+)

5-7 -- -- Not Used

8 0.35 PK 314 Radio On Signal

9 0.35 L-GN/WH 512 Right Front Low Level Audio Signal (+)

10 0.35 D-GN 1947 Left Front Low Level Audio Signal (-)

11 0.35 L-GN 1948 Right Front Low Level Audio Signal (-)

12 0.35 TN 511 Left Front Low Level Audio Signal (+)

13-15 -- -- Not Used

16 0.35 L-GN 1011 Remote Radio Control Signal

briansh73

Thanks ChevyMgr!!!! You always have all the information!

Dremin2flyhi

also you can use the PAC OEM-GM1416A-- this is an interface box that plugs in behind the radio and provides 2 sets of RCA's out for adding amplifier and also the remote trigger wire... just be careful of the cheaper line converters out there-- they dont have the impedance protection (matching) and can result in a burned out channel on the amplifier. just my

prod

There is also a thread on here about using the factory wiring instead of a line converter. Apparently, if you have the 7 speaker system, there are already line level wires, you just need to solder on some RCA plugs.

SStiglich

In the 7 speaker "premium" system, where is the amp physically located?

thanks,
steve

outlandishhhr

it is right next to the subwoofer. If you remove that little piece where you access the taillights, you'll see it.

SStiglich

Awesome, Thanks!!
