Grounding lug (Mirror LED arrows)

Gentlemen (& Ladies),

Can anyone tell me where there is a grounding lug/terminal inside the cabin of the HHR's? I'm putting LED arrows in the side mirrors, and can't seem to find a good ground under the dash for 'em...

Last edited by T 20; 01-15-2010 at 11:44 AM. Reason: addition

01-14-2010, 11:36 AM

solman98

Senior Member

Join Date: 07-17-2006

Location: Dallas, GA

Posts: 6,052

This is the inside fuse panel. That bolt to the left is a good ground.

Last edited by HillsdaleHHR; 01-14-2010 at 01:23 PM. Reason: Max Pic size 640 x 480!!!

01-14-2010, 11:40 AM

T 20

Senior Member

Thread Starter

Join Date: 05-22-2009

Location: Rough & Ready, NE Calif

Posts: 240

Ground

solman98,
OK, then, thanks a lot. Don't see which 'bolt' you're reffering to?
Mo

01-14-2010, 11:50 AM

ChevyMgr

Founding Member

Join Date: 11-23-2007

Location: Texas

Posts: 8,210

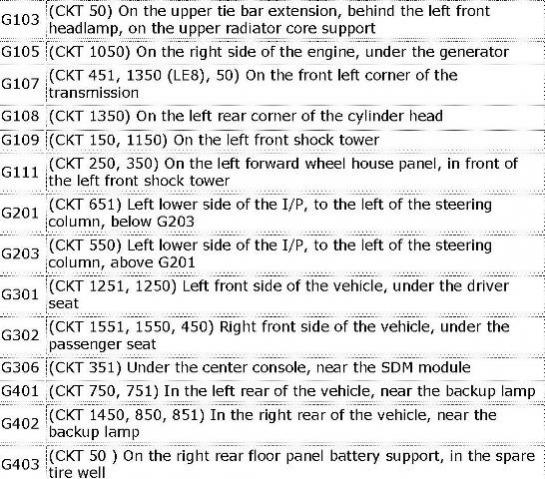

Name: grounds.jpg
Views: 256
Size: 76.9 KB

01-14-2010, 01:42 PM

txbass06

Senior Member

Join Date: 04-26-2009

Location: NE Texas

Posts: 1,222

Quote:

Originally Posted by T 20

solman98,
OK, then, thanks a lot. Don't see which 'bolt' you're reffering to?
Mo

I'm pretty sure he's referring to this one

Attached Images

01-14-2010, 01:49 PM

solman98

Senior Member

Join Date: 07-17-2006

Location: Dallas, GA

Posts: 6,052

Quote:

Originally Posted by T 20

solman98,
OK, then, thanks a lot. Don't see which 'bolt' you're reffering to?
Mo

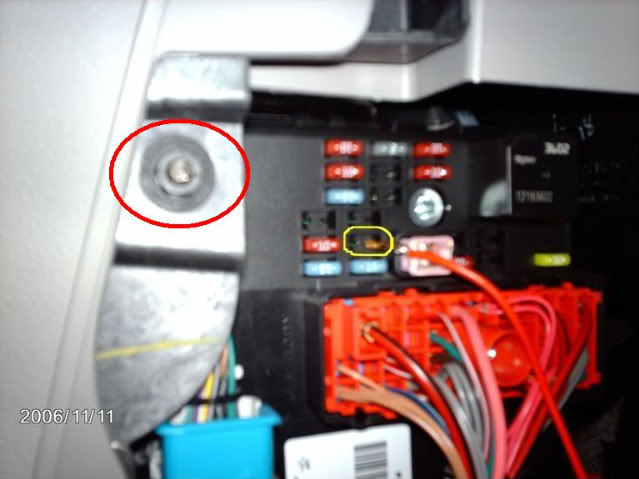

Circled in red.

Name: Picture008-1.jpg
Views: 92
Size: 41.0 KB

01-14-2010, 06:13 PM

T 20

Senior Member

Thread Starter

Join Date: 05-22-2009

Location: Rough & Ready, NE Calif

Posts: 240

Ground

After looking, I discovered that the lower/forward bracket for the snap in cover for the fuse panel is grounded as well. I just used a self tapping #10 screw and grounded there. It's right near where I had to tap into for the turn signals anyway. (I had wired my rear clearance lights to blink with the turn signals earlier.)
Thanks for all yer comebacks...

Last edited by T 20; 01-14-2010 at 06:22 PM. Reason: addition

01-14-2010, 06:51 PM

ballplr

Senior Member

Join Date: 09-18-2007

Location: Leesburg Va.

Posts: 989

where did you get the signals from?

01-14-2010, 10:57 PM

T 20

Senior Member

Thread Starter

Join Date: 05-22-2009

Location: Rough & Ready, NE Calif

Posts: 240

Mirror LED's

Quote:

Originally Posted by ballplr

where did you get the signals from?

ballplr,
I got the LED kit from Shark Racing, here's their link to the LED mirror kit:

http://www.sharkracing.com/acecart/b...cate=070000000

I used the 'Amber' colored ones.

The price is for a PAIR of 'em.

It even has a video of how to install the arrows. BUT, that ain't the hard part, getting the wires out through the hinge to the door is... On a scale of 1-10, I would rate it about 12...

PM me if ya want...

Mo

Last edited by T 20; 01-15-2010 at 11:49 AM.

01-15-2010, 01:03 AM

#10

NxlKing2304

Senior Member

Join Date: 02-09-2009

Location: New Jersey

Posts: 296

Quote:

Originally Posted by T 20

ballplr,
I got the LED kit from Shark Racing, here's their link to the LED mirror kit:

http://www.sharkracing.com/acecart/b...cate=070000000

I used the 'Amber' colored ones.

It even has a video of how to install the arrows. BUT, that ain't the hard part, getting the wires out through the hinge to the door is... On a scale of 1-10, I would rate it about 12...

PM me if ya want...

Mo

Really HARD TO EXPLAIN HOW TO COMPLETE THIS!!!! Right T20!!! PITA! But rewarding once you get it done! All I have to add to this i you CAN get the wires run through the hinge without drilling, but it takes patience, Lots and lots of it.
