thunder94

Okay, so now that someone has moved this, my opening post makes no sense.

I hang out in the CAR AUDIO section, not the LOUNGE.

And these are pics of my truck with an Audio system in it.

Why can't things stay where I put them?

chefhhr

I miss my '01 Xtreme S10. I traded it in on a Hemi Ram and regretted it every day. I took a few pictures on an old old old digital camera that I had and of course I no longer have any of the saved pics. I'd still like to own another s10...maybe one day!

thunder94

Since I posted this in the Audio/Video section, I am going to pretend it's still there and go more in depth with the system like I intended.

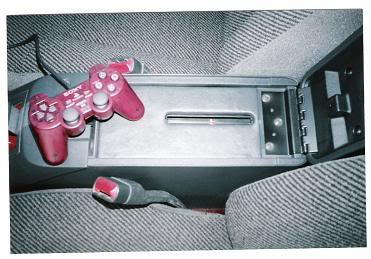

Sony PS2 in the center console:

I did this mod years ago when the PS2 was hot. Amazing on the amount of attention it still gets. His the invertor in the console and installed a fan on the back of the console to dissipate the heat.

The front doors we redone and I removed the stock map pockets and speakers.

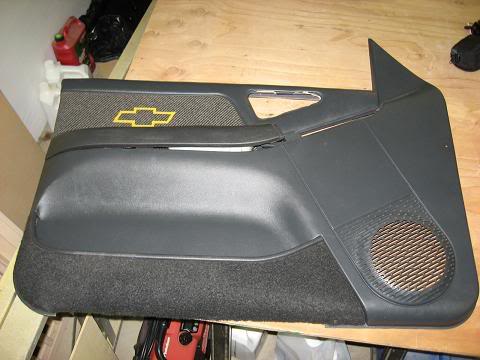

Stock:


Tear apart:

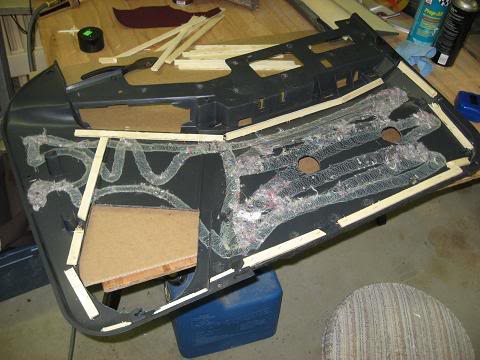

reinforce:

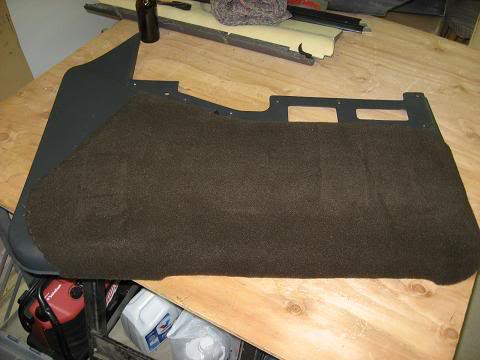

Stretch carpet::

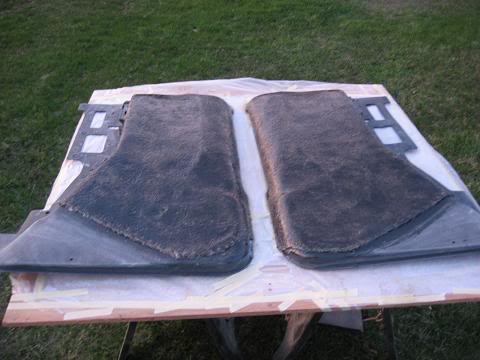

Add resin:

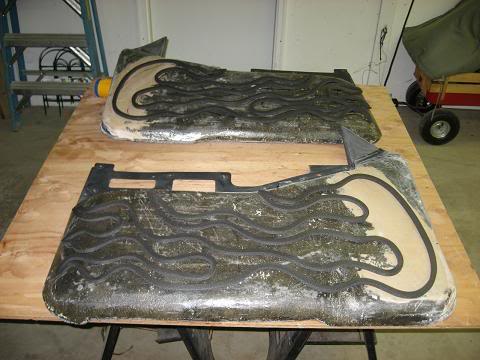

Add flames:

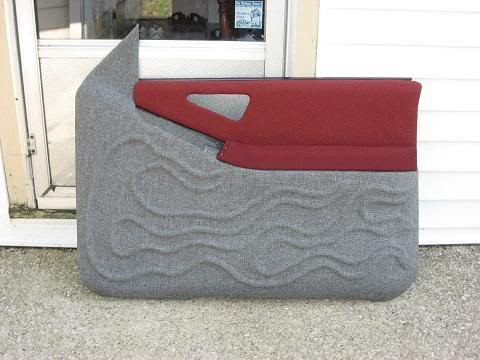

Add tweed:

thunder94

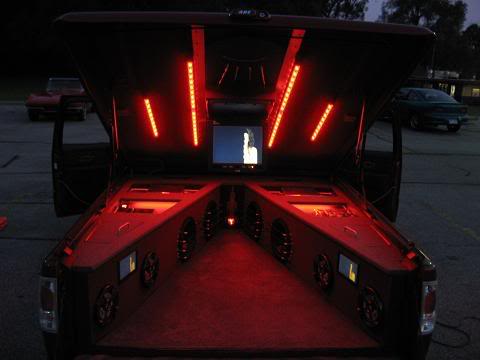

The bed system can run with the front or not at all.

4-Xtant 10: woofers running 4 ohm mono off of a MTX 2150x amp.
4-MTX 6.5" coax speakers running stereo 2 ohm off of a MTX 2150X amp.
1-13" monitor in the roof, 2-7" monitors in the side.
Fog machine in the middle with enough room down the center to haul an EZ-UP and chairs to go to a car show.


LED lighting and red neon for the one neon contest I do each year.

thunder94

For front stage I am using 2 sets of MTX components. A 6.5" set and a 4" set.

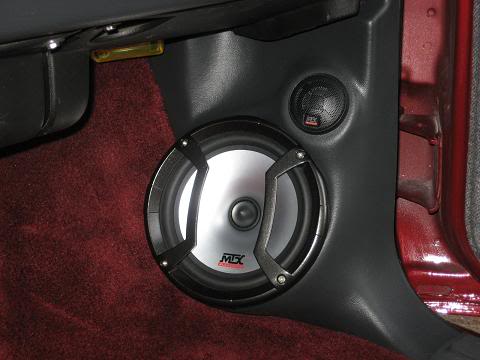

The 6.5" are in the kick-panels which adds width to the soundstage.

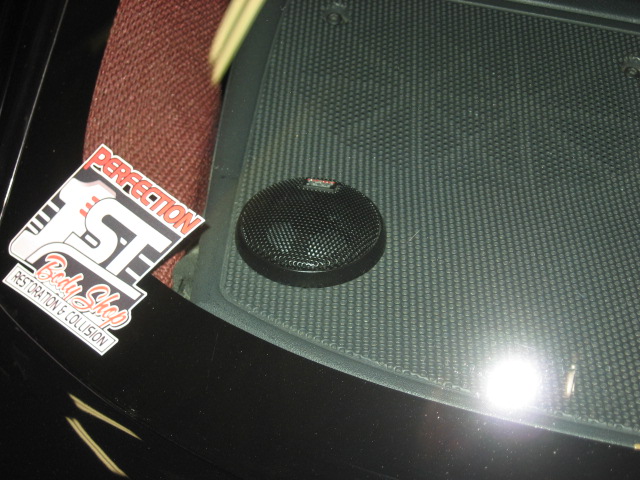

The 4" set is in the stock 4x6 locations in the dash. I made a plate to adapt the 4" mid to the 4x6 factory hole. Tweeter is flush mounted in the speaker grille. This gives my soundstage the height it needs.

thunder94

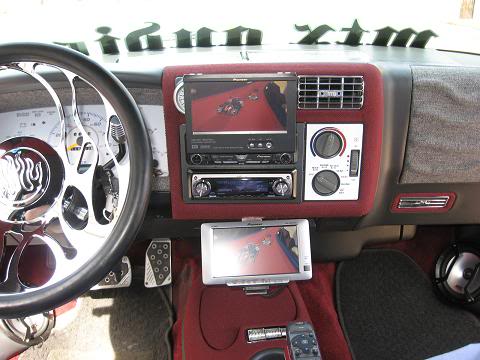

The dash holds a Pioneer Premier DEH-P860MP Cd Player.
This deck has time-alignment, 13-band EQ and built in crossovers. It had the P-bus so I added an AUX to get the DVD and PS2 audio and XM radio.

On top is a Pioneer AVH-p5700DVD DVD player. I use this just for DVD playback and an additional monitor.

Below both units is a Pioneer 7" monitor that I use to switch the video and audio to either the PS2 or DVD player.

badassbowtie

That is a lot of work....it does need two more cylinders and some drag slicks

thunder94

I installed the cab system back in 2000, next Spring it will be rebuild time!

Current:
1-MTX 4300X 4-channel on front stage 6.5" and 4" comps.
1-MTX 2300X on 4 Xtant 10" woofers.

Soon to be:
1-MTX Black Gold amp on the 4" comps
1-MTX Black Gold amp on the 6.5" comps
1-MTX 2300X on 1 Xtant X2 12" sub
1-MTX 2300X on another Xtant 12" sub.

More power!

thunder94

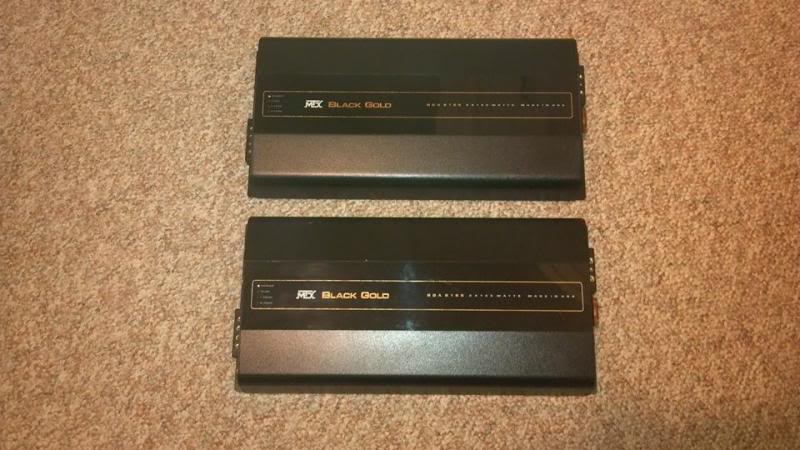

So a few days before Christmas a FedEx box shows up at my door.


Got the top amp back from MTX tech all working again!

I bought these both off of Ebay 2 years ago, one worked, one did not. My Buddy at MTX took care of it for me.

What an awesome Christmas Surprise!

thunder94

And yes, these amps are from the mid 90's!
