#10-08-44-002: Popping and/or Reduced Audio on AM Radio Stations When Radio is Powered Up or Turned On (Verify Condition/Replace and Reprogram Radio Using SPS) - (Mar 26, 2010)


Subject: Popping and/or Reduced Audio on AM Radio Stations When Radio is Powered Up or Turned On (Verify Condition/Replace and Reprogram Radio Using SPS)


Models: 2007-2008 Chevrolet Cobalt, HHR

2008 Chevrolet Malibu

2007-2008 Pontiac G5, Solstice

2007-2008 Saturn AURA, SKY

Equipped with RPO US8 or US9 Only
--------------------------------------------------------------------------------

Condition
Important: The popping, station interference and/or reduced audio conditions as described ONLY occur when listening to AM radio stations.

Some customers may comment on the following conditions:

• When listening to a very strong AM station (50kW or greater) and operating their vehicle within 1.6-3.2 km (1-2 mi) of the transmitting tower of that AM station, they will begin to hear a popping noise and/or experience reduced audio. The closer the distance to the tower, the greater the noise and an accompanying increase in the signal distortion.

• When listening to a moderate to strong AM station, another AM station will cause interference.

Cause
This condition may be caused by an AM frequency overload.

Correction
Verify the customer concern by operating the vehicle with the radio on an AM band within a 1.6-3.2 km (1-2 mi) distance of a strong AM radio station.
⇒ If the conditions as described above are present, remove and replace the radio. Refer to Radio Replacement in SI.

You must call TCSC to obtain a VCI for programming the new radio.
In order to calibrate the radio properly you will need the radio RPO, speaker system RPO and indicate if the vehicle is equipped with XM (RPO U2K).

Parts Information
DO NOT OBTAIN PARTS FROM GMSPO.



#PI0085: Itch/Creak Noise from Right Side of Instrument Panel - (Mar 31, 2010)


Subject: Itch/Creak Noise from Right Side of Instrument Panel


Models: 2010 Chevrolet HHR
--------------------------------------------------------------------------------

Condition/Concern
Some customers may comment about a itch/creak noise coming from the right side of the instrument panel. This noise is usually heard when the vehicle body is under load (accelerating, braking or sharp turns). This noise may be caused by a loading condition between the instrument panel tie bar mounting bracket and the inner hinge pillar.

Recommendation/Instructions
Have the customer describe what driving condition creates the noise (turning, accelerating or braking). Use the following steps to tighten the instrument panel tie bar fasteners. If the concern is still present, use the additional steps to revise the instrument panel tie bar mounting bracket.

Note: On sunroof equipped vehicles, use care to not damage the drain tube located in the repair area.



Remove the right instrument panel outer trim cover. Use a plastic trim tool to release the retainers.

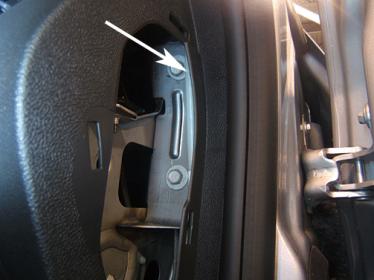

Locate the two tie bar mounting bolts and loosen them (do not remove the bolts), then tighten the bolts.
Tighten
Tighten the mounting bolts to 25 N·m (18 lb ft).

Road test the vehicle. Apply hard acceleration followed by hard stops to verify that the customer's concern is corrected. If the concern is corrected, proceed to step #8. If the concern is not corrected, proceed to step #4.

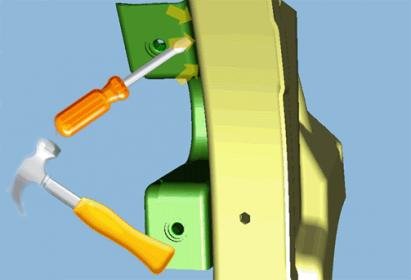

Locate the tie bar mounting bracket that is welded to the inner hinge pillar (the bracket is outboard of the mounting bolt area and cannot be seen in the photo). Remove the two tie bar mounting bolts.



Insert a large screwdriver between the bracket and the hinge pillar as shown. Use a hammer on the screwdriver to create a gap between the bracket and the inner hinge pillar.
Reinstall the two bolts.
Tighten
Tighten the bolts to 25 N·m (18 lb ft).

Road test the vehicle. Apply hard acceleration followed by hard stops to verify that the customer's concern is corrected.
Reinstall the right instrument panel outer trim cover.



#10-08-44-003B: Buzz Noise During Call When Using Bluetooth (Replace Microphone and Bezel) - (Oct 13, 2010)


Subject: Buzz Noise During Call When Using Bluetooth® (Replace Microphone and Bezel)


Models: 2009-2011 Buick Enclave, LaCrosse, Lucerne

2008-2011 Cadillac CTS, CTS-V

2009-2011 Cadillac DTS, Escalade, Escalade ESV, Escalade EXT, SRX, STS (with RPO YQ1 or YQ2), XLR

2009-2010 Chevrolet Cobalt, Corvette, Equinox, HHR, Impala, Malibu, Silverado, Suburban, Tahoe, TrailBlazer, Traverse

2010-2011 Chevrolet Camaro

2009-2010 GMC Envoy

2009-2011 GMC Acadia, Sierra, Yukon, Yukon XL

2009-2010 Pontiac G5, G6, Solstice, Torrent

2009-2010 HUMMER H2, H3

2009-2010 Saturn AURA, OUTLOOK, SKY, VUE

2009 Saab 9-7X

All Equipped with OnStar® (UE1) and Bluetooth (UPF)
--------------------------------------------------------------------------------

This bulletin is being revised to replace the microphone and bezel (if needed) and update model years. Please discard Corporate Bulletin Number 10-08-44-003A (Section 08 - Body and Accessories).


--------------------------------------------------------------------------------

Condition
Some customers may comment on a buzz noise (from the land-line side only) during a call.

On any vehicle equipped with OnStar® (UE1) and Bluetooth® (UPF), an electromagnetic compatibility (EMC) buzz can be heard from the land-line side only of the phone during a Bluetooth® phone call made with an older model global system for mobile communications (GSM) phone. The buzz is only heard with older model GSM phones and is dependent on the distance of the phone from the microphone. The newer 3G GSM phones or other cellular phones (CDMA, TDMA, etc.) have not shown this concern.

Correction

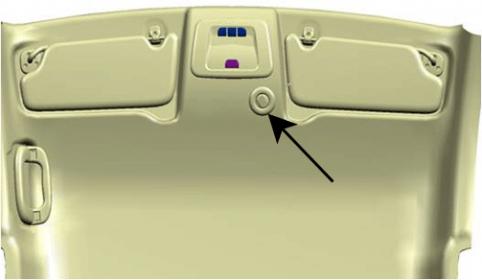

Equipped with Headliner Microphone (Cobalt, HHR (non-sunroof) H2, H3)




A new microphone and bezel has been developed to address this concern. Replace the existing microphone with GM P/N 20951265. Also replace the bezel. Refer to the parts information table below for correct color/part number.

Equipped with Overhead Console Microphone






A new microphone has been developed to address this concern. Replace the existing microphone with GM P/N 20951265.

Parts Information Part Number Description

20951265 Microphone

25932003 LT. Titanium Bezel

25932004 Neutral Bezel

25966446 LT Opel Grey Bezel



#07-09-41-010C: Airbag Light On, DTC B0071 and B0081 Set (Diagnose and Replace Right Front Seatbelt Buckle, If Necessary) - (Apr 15, 2010)


Subject: Airbag Light On, DTC B0071 and B0081 Set (Diagnose and Replace Right Front Seatbelt Buckle, If Necessary)


Models: 2005-2007 Buick Terraza

2006-2010 Buick Lucerne

2006-2010 Cadillac DTS

2007-2010 Cadillac Escalade, Escalade ESV, Escalade EXT

2005-2009 Chevrolet Uplander

2006-2007 Chevrolet Monte Carlo

2006-2010 Chevrolet HHR

2006-2008 Chevrolet Impala

2007-2010 Chevrolet Avalanche, Cobalt, Colorado, Silverado, Suburban, Tahoe

2007-2010 GMC Canyon, Sierra, Yukon, Yukon Denali, Yukon XL, Yukon Denali XL

2005-2009 Pontiac Montana SV6

2007-2010 Pontiac G5

2005-2007 Saturn RELAY

2008-2010 Saturn VUE

2006-2010 HUMMER H3

2009-2010 HUMMER H3T
--------------------------------------------------------------------------------

This bulletin is being revised to update the model years. Please discard Corporate Bulletin Number 07-09-41-010B (Section 09 - Restraints).


--------------------------------------------------------------------------------

Condition
Some customers may comment on the airbag light being illuminated. Upon investigation, the technician may find DTC B0071 set in the passenger presence system (PPS) and a DTC B0081 in the sensing and diagnostics module (SDM).

Correction
Do This
Don't Do This

Diagnose and replace the right front seatbelt buckle, if necessary.
Do not replace the passenger presence system or the sensing and diagnostic module.


Verify proper system electrical connections. Inspect the passenger seat belt tension sensor signal, voltage reference and low reference circuits, carefully for cutting and/or chaffing per SI instructions for DTC B0071. If all checks have been made and no fault has been found, replace the belt tension sensor.

Important: The seat belt tension sensor is not serviced separately. The seat belt buckle with the tension sensor must be serviced as a complete unit.

Parts Information
For part number and usage of seatbelt buckles, refer to Group 14.875 (cars) or Group 16.714 (trucks) of the appropriate parts catalog.



#PI0100: Stability Control Inoperative Due to Different Tire Sizes or Manufacturers, Service ESC Indicator Illuminated, DTC C0460 Set - (Apr 15, 2010)


Subject: Stability Control Inoperative Due to Different Tire Sizes or Manufacturers, Service ESC Indicator Illuminated, DTC C0460 Set


Models: 2006-2010 Chevrolet HHR
--------------------------------------------------------------------------------

The following diagnosis might be helpful if the vehicle exhibits the symptom(s) described in this PI.

Condition/Concern
The Service Electronic Stability Control (ESC) light is on due to DTC C0460-42 "Steering Position Signal Initialization Not Accomplished" being set. Stability control will be inoperative.

Customers may have one or more tires that are different sizes or produced by different manufacturers or have low air pressure sensors that are mounted on the vehicle. It has been determined that some tires of different brands may have rolling diameters that are either large or small enough in comparison to the other original tire(s) on the vehicle that may allow DTC C0460 to set.

Important: DO NOT replace the steering angle sensor in the vehicle without confirming the tire, size, brand and pressure.

Recommendations/Instructions
Before attempting any repairs:

• Confirm that all tires are of the proper size and that all are matching brands.

• Check and adjust all tires to the stated cold air pressure as identified on the tire placard. Low tire pressure may induce DTC C0460.

• Check and diagnose all EBCM wheel speed sensor related DTCs first (example: C0035, C0040, C0045 and C0050).

If a mis-sized or non-matching brand tire is present, inform the customer that in order for the electronic stability control system to function normally, tires need to be a uniform size and rolling diameter and match the original equipment tire sizes and specifications.

If the tires are found to be satisfactory, please refer to normal diagnostics in SI for DTC C0460.



#PIE0041B: EI10006-Engineering Information-SIR/Airbag Indicator/Light On, DTC B0019 or B0020 Set (Repair Inflatable Restraint I/P Connector) - (Apr 15, 2010)


Subject: EI10006 -- Engineering Information -- SIR/Airbag Indicator/Light On, DTC B0019 or B0020 Set (Repair Inflatable Restraint I/P Connector)


Models: 2009-2010 Chevrolet HHR
--------------------------------------------------------------------------------

This PI is being revised to end the need for information from the field and provide repair information. Please discard PIE0041A.


--------------------------------------------------------------------------------

Condition
Some customers may comment on the SIR/Airbag indicator/light on in the Instrument Panel Cluster (IPC). Upon investigation, the technician may find SIR DTCs B0019.0D, B0019.04, B0020.0D, and/or B0020.04 set.

Note: This concern only involves the SIR/Airbag indicator (shown below). Do not proceed with this bulletin if only the Passenger Airbag indicator is On.


Cause
This condition may be caused by fretting corrosion on the terminals of inflatable restraint I/P harness to body harness connector X211 due to excessive vibration.

Correction
If a vehicle is encountered with the above condition, follow the steps below:

If DTCs B0019 and/or B0020 is set, the connection from the body harness to the I/P passenger inflatable restraint harness (X211) needs to be inspected. The symptom byte B0019.0D or B0020.0D set in history and the SIR/airbag indicator/light turning on intermittently are usually the first symptoms that fretting corrosion is beginning to occur on the terminals of this connector. A history DTC will clear once 100 malfunction-free ignition cycles have occurred. X211 is located in the front passenger kick panel area. Refer to Harness Routing Views in SI. If DTCs B0019 and/or B0020 are not set, proceed with step 2.
• If the DTC is set in history, remove the passenger side kick panel. Locate the passenger inflatable restraint I/P harness to body harness connector X211. Turn the ignition ON. Wait for the self test to complete. The SIR/airbag indicator/light will turn off. Wiggle this connection and see if the SIR/airbag indicator/light turns on. If not, drive the vehicle over bumps and see if the SIR/airbag indicator/light turns on. This DTC typically sets when the connector experiences some vibration.

• If the airbag light turns on and the DTC is set current, turn off the ignition. Inspect the terminals for corrosion. If corrosion is found, clean the terminals with a small wire brush. Brush on a small amount of dielectric grease, GM P/N 12345579 (in Canada, use 10953481) to the female side of the terminals. Reconnect the connector. To stiffen up the connection, wrap with electrical tape in a double layer around the body harness about 50 mm (2 in) down from the connector, wrap over the connector, and about 50 mm (2 in) up the airbag pigtail. Reinstall the harness behind the trim. Clear DTCs. Test drive to ensure that the DTC does not reoccur. Check DTCs to ensure that no history DTC (B0019 or B0020) is reported by the SDM.

If any other DTC(s) are set, refer to diagnosis and repair procedures in SI.



#10037: Customer Satisfaction - Unwanted Repeat Calls to OnStar - (Apr 20, 2010)


Subject: 10037 - Unwanted Repeat Calls to OnStar®


Models: 2003 Buick LeSabre

2004-2006 Buick Rendezvous

2005 Buick LeSabre, Terraza

2005-2006 Buick LaCrosse/Allure

2006-2008 Buick Lucerne

2008 Buick LaCrosse/Allure

2008-2009 Buick Enclave

2003 Cadillac CTS

2004 Cadillac Escalade

2004-2005 Cadillac CTS-V, Deville

2005 Cadillac Escalade ESV, SRX

2005-2006 Cadillac STS

2005-2008 Cadillac CTS

2006-2008 Cadillac DTS

2007 Cadillac Escalade, Escalade EXT

2007-2008 Cadillac Escalade ESV

2008 Cadillac SRX, STS

2002 Chevrolet Impala

2003-2008 Chevrolet Suburban

2003-2009 Chevrolet Silverado

2004-2008 Chevrolet Impala

2005 Chevrolet Colorado, Corvette, Malibu

2005-2006 Chevrolet Uplander

2005-2008 Chevrolet Avalanche, Tahoe, TrailBlazer

2006 Chevrolet HHR, Monte Carlo

2006-2008 Chevrolet Equinox

2007-2008 Chevrolet Corvette

2008 Chevrolet HHR

2008-2009 Chevrolet Cobalt, Colorado, Malibu, Uplander

2003 GMC Envoy XL, Sierra, Yukon XL

2004-2008 GMC Yukon

2005-2009 GMC Sierra

2005-2008 GMC Yukon XL

2006-2008 GMC Envoy

2007 GMC Canyon

2007-2009 GMC Acadia

2006 HUMMER H2

2006-2008 HUMMER H3

2008 HUMMER H2

2003 Oldsmobile Silhouette

2005 Montana SV6

2005-2008 Pontiac Grand Prix

2006 Pontiac G6, Vibe

2007 Pontiac Montana SV6

2007-2008 Pontiac Solstice

2008 Pontiac G6, Torrent

2008-2009 Pontiac G5, G8

2009 Pontiac G3, Montana SV6

2005-2007 Saturn ION

2006-2009Saturn VUE

2007-2008 Saturn AURA, OUTLOOK, SKY

Equipped with OnStar® (RPO UE1)




--------------------------------------------------------------------------------

THIS PROGRAM IS IN EFFECT UNTIL APRIL 30, 2011.

Condition
Certain 2002-2009 model year vehicles equipped with OnStar® may have a condition in which the vehicle's OnStar® system repeatedly makes incomplete calls to OnStar® without the vehicle's occupant(s) input or knowledge. Customer initiated Blue Button call, Emergency calls, and Automatic Crash Notification calls will also fail to establish a data connection with the OnStar® Call Center. Eventually, the customer's call will connect as a voice only line and the customer will be able to talk with an OnStar® advisor; however, the advisor will not get crucial customer data such as vehicle identification and location.

Correction
Dealers/retailers are to replace the OnStar® module (VCIM).

Vehicles Involved
Involved are certain 2002-2009 model year vehicles equipped with OnStar®, and built within these VIN breakpoints:

Note: Some model years/models have only one vehicle involved.


Service Procedure
Note: Do NOT replace the inside rear view mirror in tandem with this concern. The mirror has no bearing on this specific issue.

Remove the OnStar® module (referred to as the Communication Interface Module (CIM) or Vehicle Communication Interface Module (VCIM) in SI). Refer to SI for module removal instructions.
Note: Inform customer that all Bluetooth devices must be paired with the new VCIM. Bluetooth devices that have not been paired to the new VCIM will not function properly.

Install the new OnStar® module (referred to as the Communication Interface Module (CIM) or Vehicle Communication Interface Module (VCIM) in SI). Refer to SI for module installation instructions.

Post #5000



#PI0117: SIR/Airbag Indicator Light On, DTC B0019 or B0020 Set - (May 4, 2010)


Subject: SIR/Airbag Indicator Light On, DTC B0019 or B0020 Set


Models: 2009-2010 Chevrolet HHR
--------------------------------------------------------------------------------

The following diagnosis might be helpful if the vehicle exhibits the symptom(s) described in this PI.

Condition/Concern:
Some customers may comment on the SIR/Airbag indicator/light on in the Instrument Panel Cluster (IPC). Upon investigation, the technician may find SIR DTCs B0019.0D, B0019.04, B0020.0D, and/or B0020.04 set.

Note: This concern only involves the SIR/Airbag indicator (shown below). Do not proceed with this bulletin if only the Passenger Airbag indicator is On.


This condition may be caused by fretting corrosion on the terminals of inflatable restraint I/P harness to body harness connector X211 due to excessive vibration.

Recommendation/Instruction:
If a vehicle is encountered with the above condition, follow the steps below:

If DTCs B0019 and/or B0020 is set, the connection from the body harness to the I/P passenger inflatable restraint harness (X211) needs to be inspected. The symptom byte B0019.0D or B0020.0D set in history and the SIR/airbag indicator/light turning on intermittently are usually the first symptoms that fretting corrosion is beginning to occur on the terminals of this connector. A history DTC will clear once 100 malfunction-free ignition cycles have occurred. X211 is located in the front passenger kick panel area. Refer to Harness Routing Views in SI. If DTCs B0019 and/or B0020 are not set, proceed with step 2.
• If the DTC is set in history, remove the passenger side kick panel. Locate the passenger inflatable restraint I/P harness to body harness connector X211. Turn the ignition ON. Wait for the self test to complete. The SIR/airbag indicator/light will turn off. Wiggle this connection and see if the SIR/airbag indicator/light turns on. If not, drive the vehicle over bumps and see if the SIR/airbag indicator/light turns on. This DTC typically sets when the connector experiences some vibration.

• If the airbag light turns on and the DTC is set current, turn off the ignition. Inspect the terminals for corrosion. If corrosion is found, clean the terminals with a small wire brush. Brush on a small amount of dielectric grease, GM P/N 12345579 (in Canada, use 10953481) to the female side of the terminals. Reconnect the connector. To stiffen up the connection, wrap with electrical tape in a double layer around the body harness about 50 mm (2 in) down from the connector, wrap over the connector, and about 50 mm (2 in) up the airbag pigtail. Reinstall the harness behind the trim. Clear DTCs. Test drive to ensure that the DTC does not reoccur. Check DTCs to ensure that no history DTC (B0019 or B0020) is reported by the SDM.

If any other DTC(s) are set, refer to diagnosis and repair procedures in SI.



#PI0128: Engine Misfire/Low Compression - (May 12, 2010)


Subject: Engine Misfire/Low Compression


Models: 2008-2010 Chevrolet Cobalt, HHR

2008-2010 Pontiac Solstice

2008-2010 Saturn SKY

2008-2009 Daewoo G2X

2008-2010 Opel GT

Equipped with 2.0L Engine (VIN X - RPO LNF)
--------------------------------------------------------------------------------

Condition/Concern:
Some 2.0L Turbo engines may come in with a misfire on one cylinder.

For further misfire diagnosis, a technician should perform a compression test. The results may lead to a cylinder with low compression (85-90 psi). This may be the cause the misfire. The cylinder with the low compression may have a burned/ damaged piston from detonation. The damage to the piston is usually above and below the first compression ring in an area about 25.4 mm (1 in) in length.

Recommendation/Instructions:
Damage of this type to the piston is usually caused by aftermarket equipment (examples are: air induction systems, intercooler cooling devices, NOS systems, ECM calibrations), all designed to boost the output of the engine. This increased output of the engine can lead to severe detonation in certain conditions. If diagnosed with this condition, the vehicle should be inspected for aftermarket performance equipment and/or calibrations (Refer to bulletin 08-06-04-033C for help on Identifying calibrations) and it should be noted on the repair order.

The GM Accessories power upgrade kit by itself is designed for this engine and should be the recommended performance enhancing equipment. Using the GM accessory kit with other aftermarket components could damage the engine as well.

If repairs to the engine are the result of the installation or use of a non-GM approved part, the warranty will not be honored.



#08-05-22-004A: Information on Brake Squeal/Squeak Noise - (May 20, 2010)


Subject: Information on Brake Squeal/Squeak Noise


Models: 2008-2010 Cobalt SS, HHR SS
--------------------------------------------------------------------------------

This bulletin is being revised to add 2010 model year. Please discard Corporate Bulletin Number 08-05-22-004 (Section 05 - Brakes).
--------------------------------------------------------------------------------
Do This:
Inform the customer that this is a normal characteristic of the high performance brake system.

Don't Do This:
DO NOT repair or replace the rotors or brake pads.


Under certain weather or operating conditions, occasional brake squeal, squeak, or other noise may be heard with the above vehicle's performance braking system. The brake system is designed for superior fade resistance and consistent operation using high performance brake pads. Some brake noise and brake dust is considered normal and do not affect system performance.

DO NOT attempt to repair or replace any parts for this kind of noise concern. The squeal or squeak noise is not indicative of any concerns with the braking system. You may wish to give the customer a copy of this bulletin.
